Flexible Panel

Key Features of Our Flexible Panels

Lightweight

2.8kg/㎡

Thin

3mm

Customizable

0.5W～

We propose the most suitable solar panels based on our customers’
applications and installation environments.

Our range includes lightweight flexible panels, customizable glass-type panels,
and application-oriented products designed to integrate seamlessly into everyday life.
Glass Panel
Flexible Panel
Exterior Material
Tempered Glass + Aluminum Frame
Resin Film / Plastic Substrate
Weight
Heavy (approx. 10–15 kg/m²)
Lightweight (approx. 2.8 kg/m²)
Thickness
Thick (30 mm or more)
Thin (approx. 3 mm)
Installation Method
Mounted on roof or ground
with racking system
Adhesive, screws,
or integrated into building materials
Applications
Mega solar plants,
residential roofs
Lightweight roofs,
walls, carports

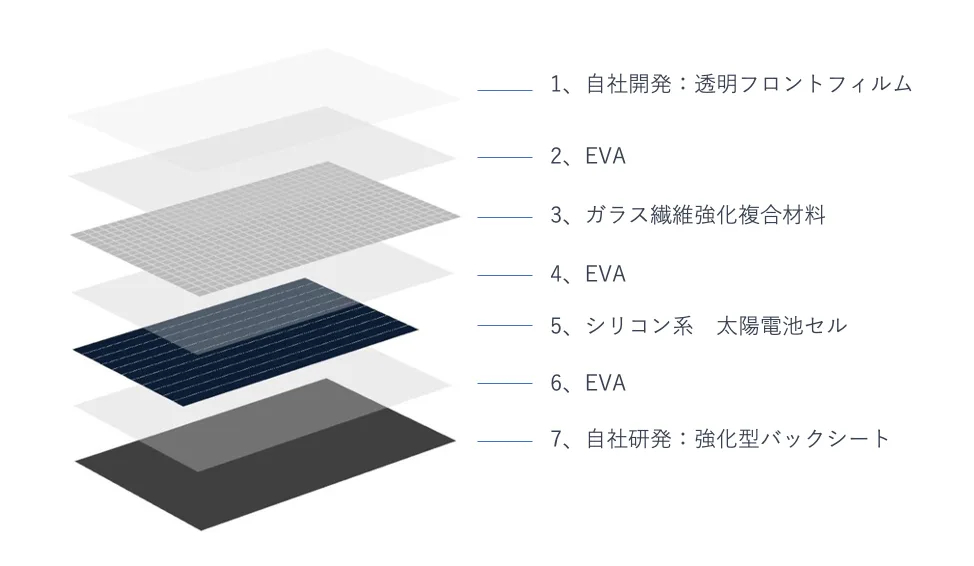

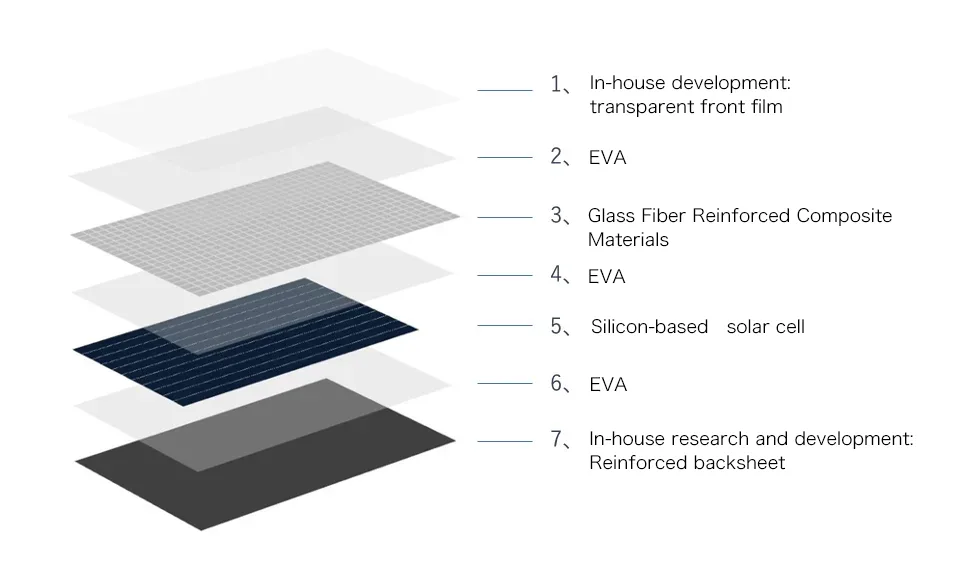

Achieving Lightweight MMB

1. Superior Durability
– In-House Developed Front Film

Average UV wavelength transmittance: < 2%

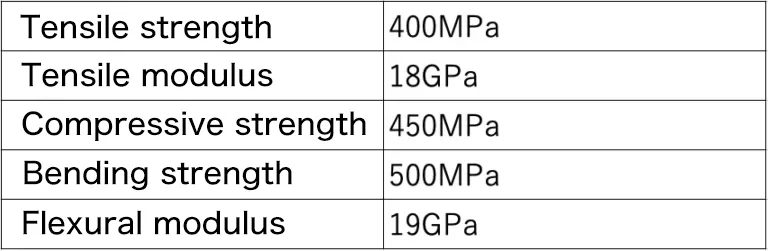

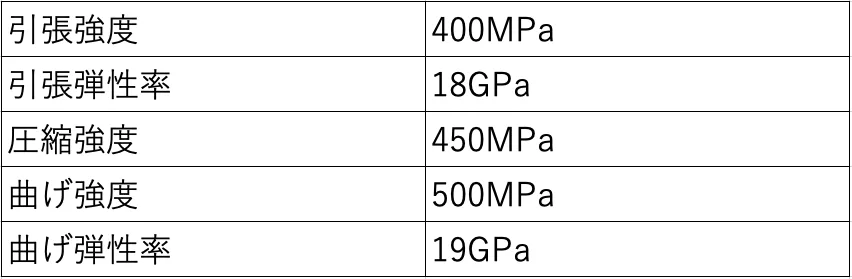

3. Superior Durability
– Glass Fiber Reinforced Composite Material

Extremely Strong Mechanical Properties

7. Superior Durability
– In-House Developed Reinforced Backsheet

・Thickness: 700 μm, twice that of standard backsheets
・Mechanical strength: 3 times higher than
　standard backsheets, providing ample support for the panel
・Water vapor transmission rate: ≤ 2 g/m²·day

Advantages of Lightweight Design

New Horizons in Solar Power with Lightweight & Flexible Panels

Weighing just 2.8 kg/m², these panels are 70% lighter than single-glass panels, significantly reducing transportation costs. The anti-glare design efficiently captures sunlight, and no racking system is required, enabling easy installation. Thanks to their flexible structure, these next-generation solar panels excel in a wide range of applications.

３％

Three times lower degradation under IEC standard conditions

DH Test

6,000-hour resistance verified

PID FREE

PID-tested at 85% RH and 85°C

３％

Degradation Rate in 2,000-Hour 5% Salt Spray Test

Detailed Data

lightweight type

超軽量薄型

フレキシブルモジュールは、軽量かつ柔軟性に優れた次世代太陽光パネルです。わずか3mmの薄さと2.8kg/㎡の軽さで、従来の約30％の重量を実現。
FLEXON 90-100W
FLEXON 200-210W
FLEXON 300-305W
FLEXON 400-410W

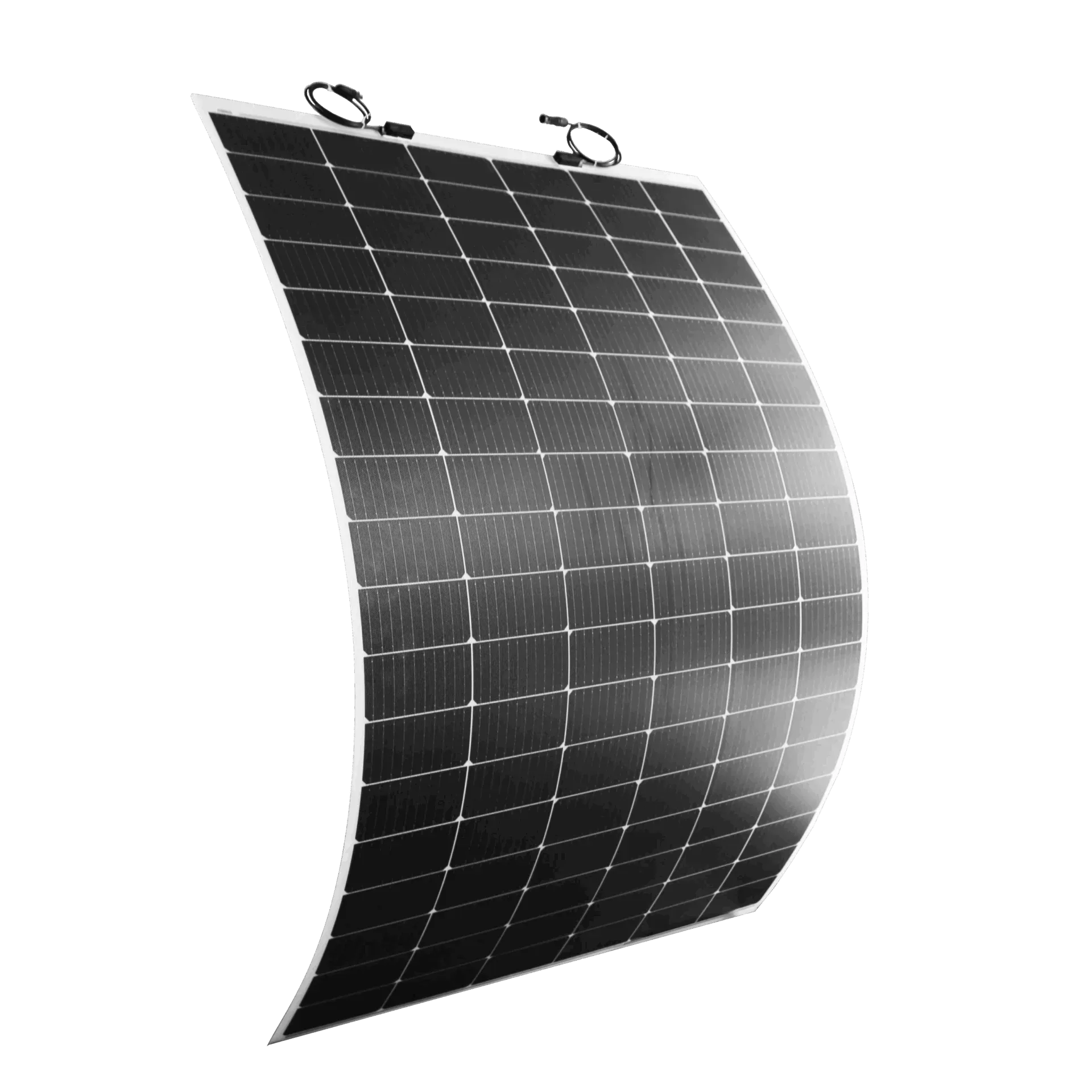

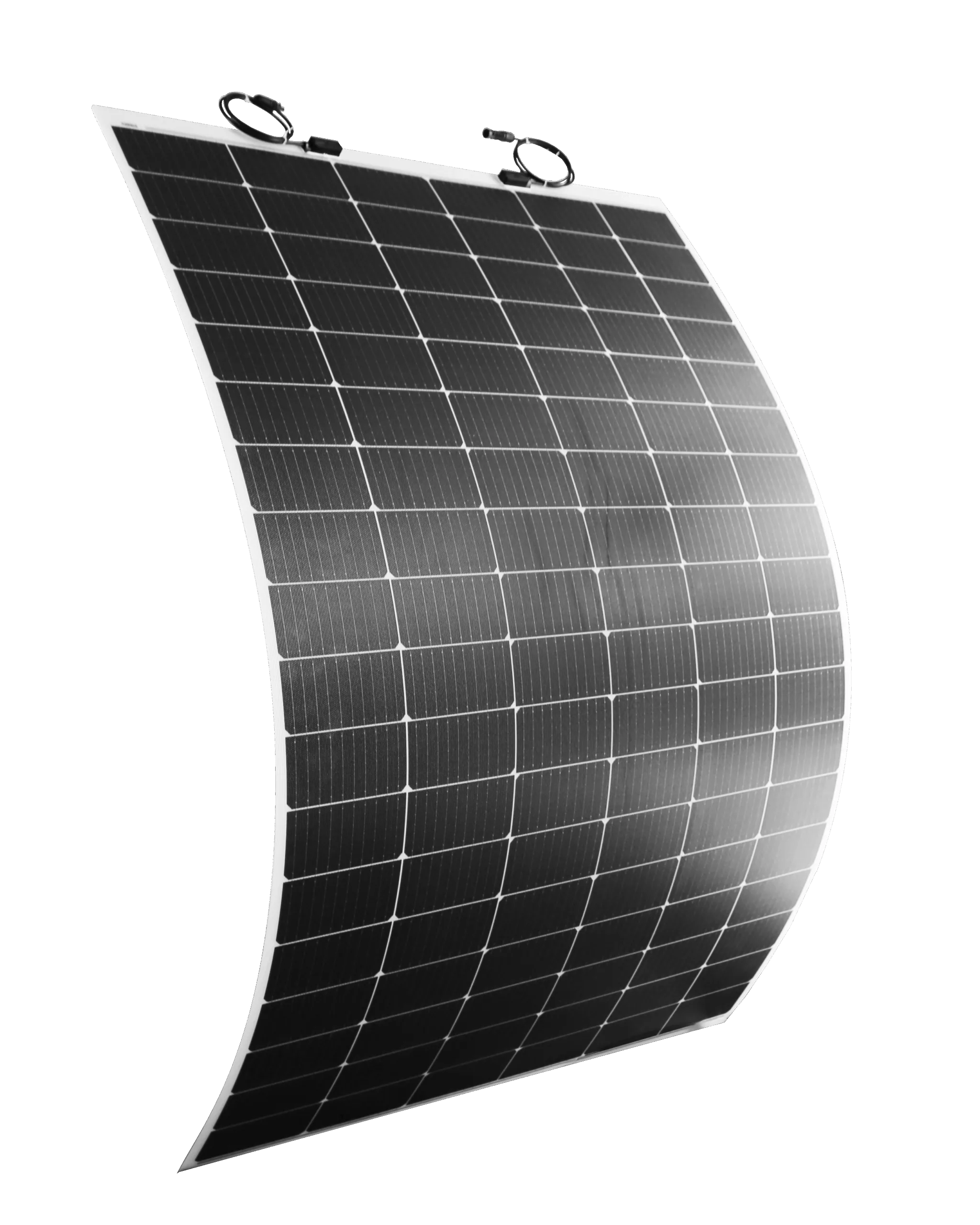

Lightweight type

Flexible panels are next-generation solar panels, offering exceptional lightness and flexibility. With a slim thickness of just 3 mm and a lightweight of 2.8 kg/m², they achieve approximately 30% of the weight of conventional panels.
FLEXON 90-100W
FLEXON 200-210W
FLEXON 300-305W
FLEXON 400-410W

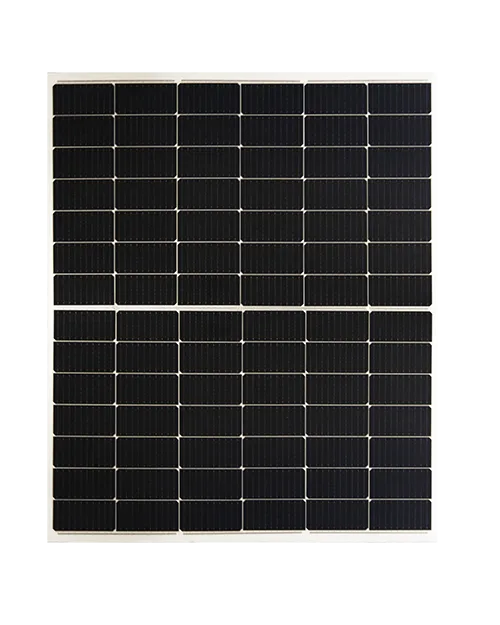

Durability enhanced type

The frame makes it highly durable even in outdoor environments. Its thinness makes it resistant to wind and impact, making it ideal for permanent installation. It can be used safely on buildings, roofs, carports, factories, etc.
Frame305W（A型）
Frame400W（厚さ20mm）
Frame305W（B型）
Frame400W（厚さ30mm）

Durability enhanced type

耐久性強化タイプ

フレーム付きで、屋外環境でも高い耐久性を発揮。薄さを保ちつつ、風や衝撃にも強く、常設設置に最適です建物や屋根やカーポート、工場などでも安心してお使いいただけます。
フレーム305W（A型）
フレーム400W（厚さ20mm）
フレーム305W（B型）
フレーム400W（厚さ30mm）

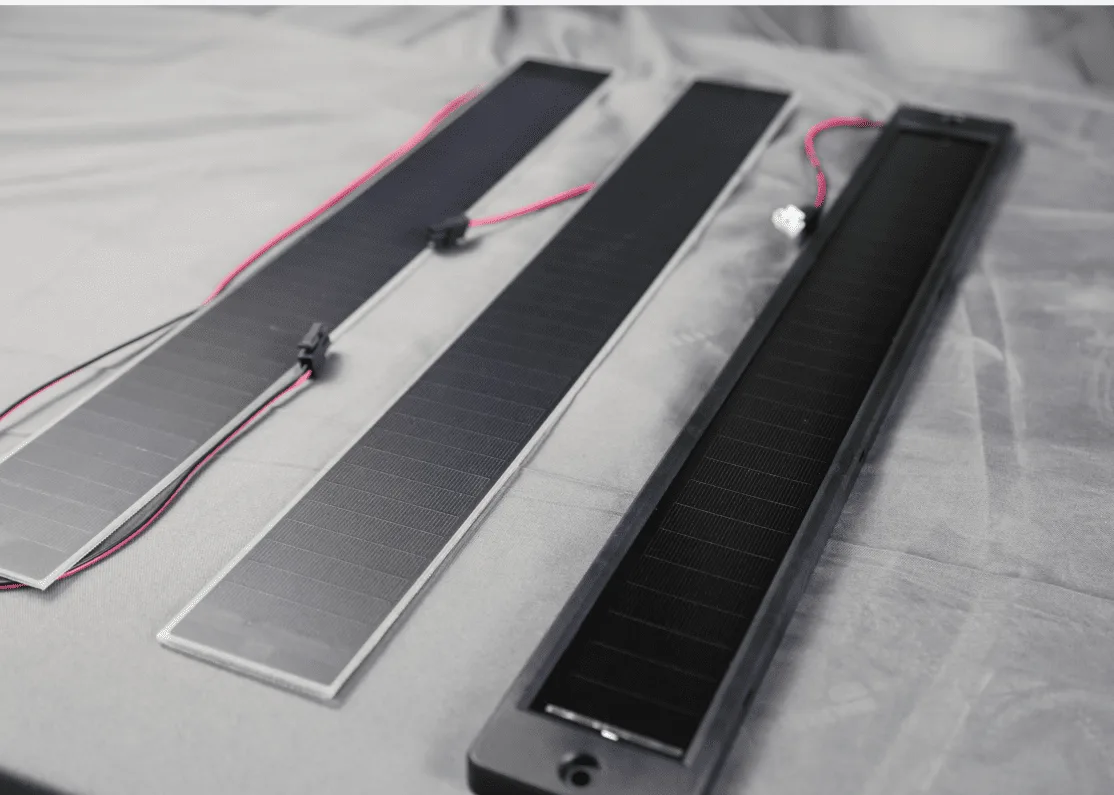

Special made to order

特殊オーダーメイド

曲面や異形面にもぴったり沿う超軽量・薄型設計で、従来難しかった場所にも設置可能。 耐塩害・耐アンモニア・耐UVの高耐久仕様で、沿岸・畜産・工場屋根など過酷環境でも長寿命。
BIPV-SOLAR-ROOF-45W-90W
BIPV-SOLAR-ROOF-45W-90W
MicroFit-10W-50W

Special made to order

With an ultra-lightweight, thin design that conforms perfectly to curved and irregular surfaces, these panels can be installed in locations that were previously difficult. Featuring high durability against salt, ammonia, and UV, they offer long-lasting performance even in harsh environments such as coastal areas, livestock facilities, and factory rooftops.
BIPV-SOLAR-ROOF-45W-90W
BIPV-SOLAR-ROOF-45W-90W
MicroFit-10W-50W
